Z1 GNSS Receiver

Accurate in Your Palm

Z1 GNSS RECEIVER

Back

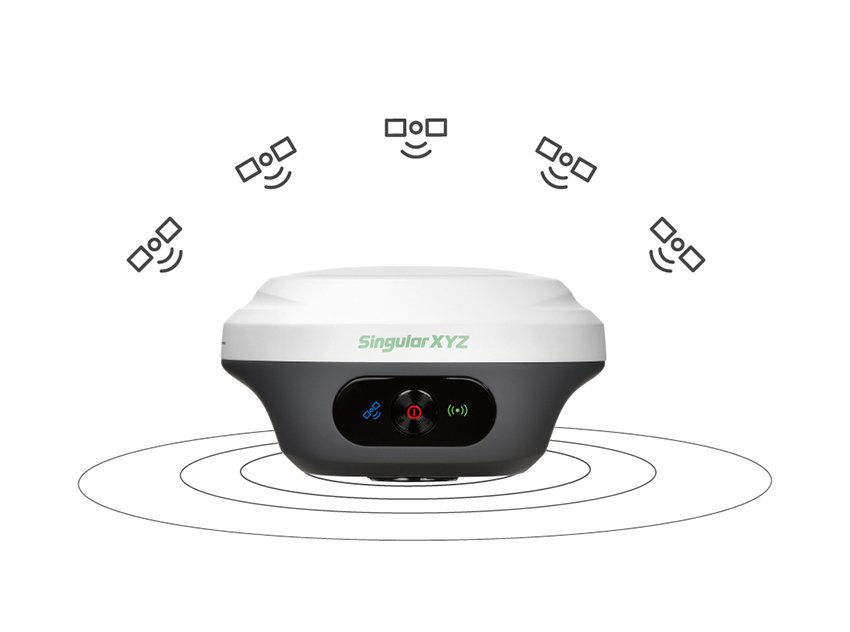

Full-Constellation

Full-Constellation, Fixed in Seconds

Full-constellation tough signal tracking, robust anti-interference and advanced RTK algorithm, Z1 takes only a few seconds to get a stable fixed solution even in challenging environments like multipath, tree canopy, city canyons, etc.

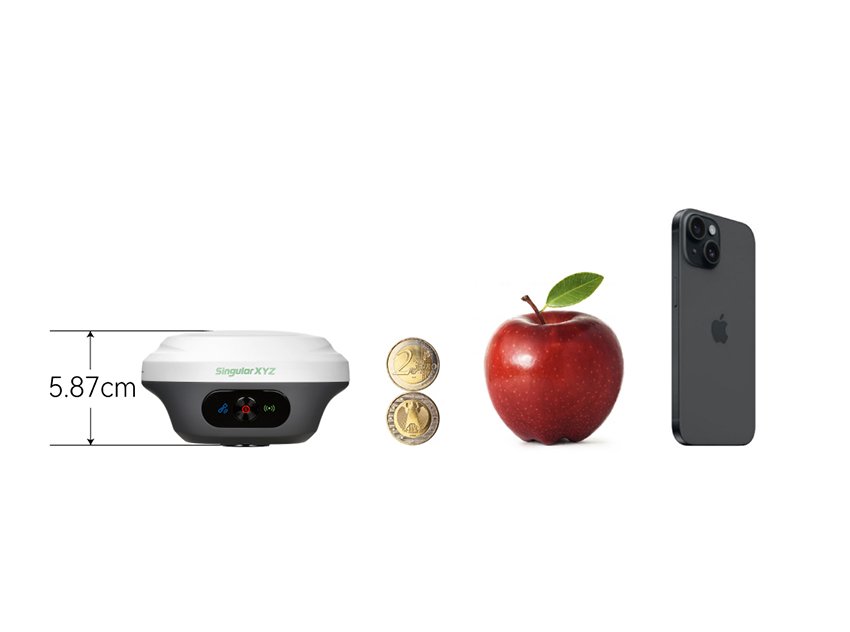

Mini in Hand

Mini in Hand

The Z1 GNSS receiver is crafted with a compact Φ107 mm × 58.7 mm palm-sized design, reducing the burden on surveyors while delivering powerful performance and versatile functionality.

Mini in Hand

Mini in Hand

The Z1 GNSS receiver is crafted with a compact Φ107 mm × 58.7 mm palm-sized design, reducing the burden on surveyors while delivering powerful performance and versatile functionality.

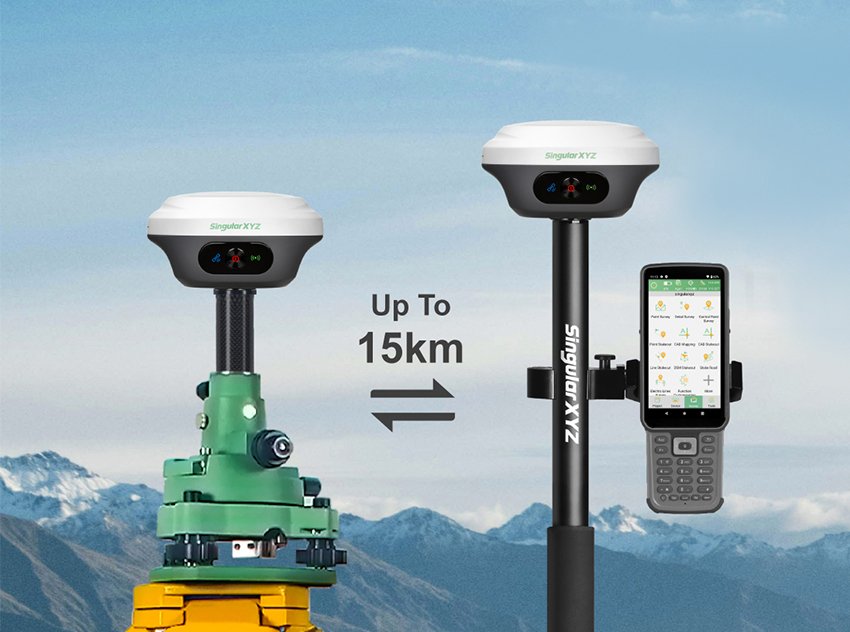

Ultra-Long Baseline

Ultra-Long Baseline

– Internal Radio Mode: Achieve up to 15km range with the built-in UHF radio for reliable field communication.
– PDA CORS Mode: Connect through Bluetooth, easily access to local CORS stations via PDA device for 50km range.

SATELLITES TRACKING

Channels

  • 1408

BDS

  • B1I, B2I, B3I, B1C, B2a, B2b

GPS

  • L1C/A, L1C, L2C, L2P(Y), L5

GLONASS

  • G1, G2, G3

Galileo

  • E1, E5a, E5b, E6

QZSS

  • L1C/A, L1C, L2C, L5

RTK Accuracy

  • 8mm+1ppm Horizontally
  • 15mm+1ppm Vertically
COMMUNICATION

UHF modem

  • Up to 15km with optimal conditions

Bluetooth

  • BT4.0 dual mode

NFC

  • Support

WiFi

  • 802.11 a/b/g/n/ac

Interface

  • - 1 Type-C Interface for Data Transmission and Charging
  • - 1 SMA Connector for UHF Antenna
GENERAL

WebUI

  • Accessible via Wi-Fi

Battery

  • 4200 mAh, up to 15 Hours Working Time

Size

  • Φ107 mm × 58.7 mm

Weight

  • 547 g

Waterproof & Dustproof

  • IP67

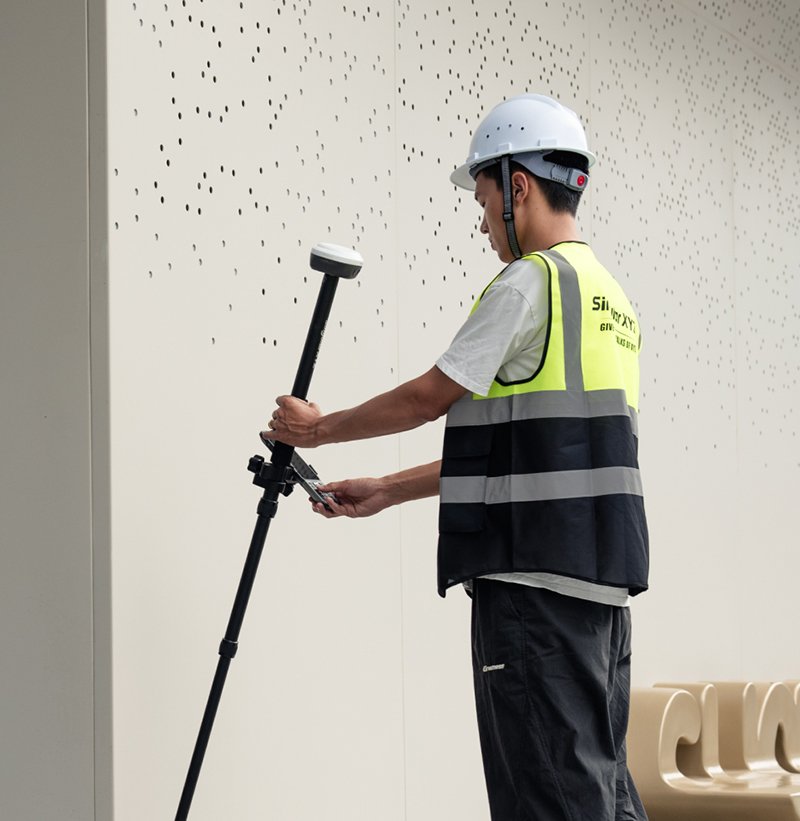

60° Tilt Surveying

Optimized with the built-in IMU module, you can easily initialize the IMU and start tilt measurements up to 60° range, delivering ±2.5cm accuracy for the whole work.

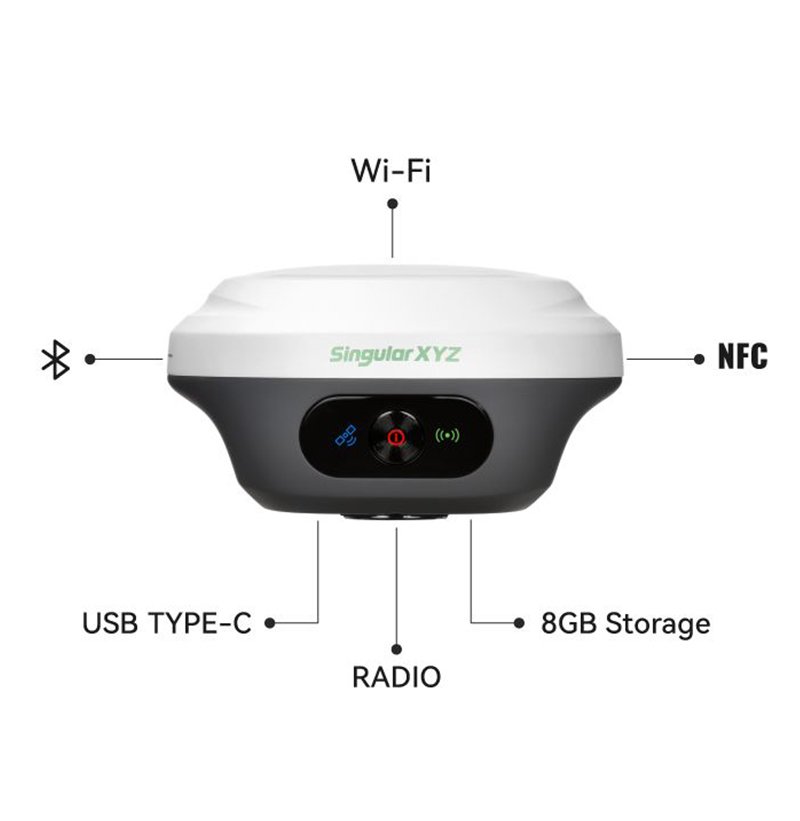

Versatile Transmission

With integrated NFC, Bluetooth, WiFi, USB Type-C and 8GB onboard storage, Z1 offers versatile connectivity options, making data transfer and device management effortless.

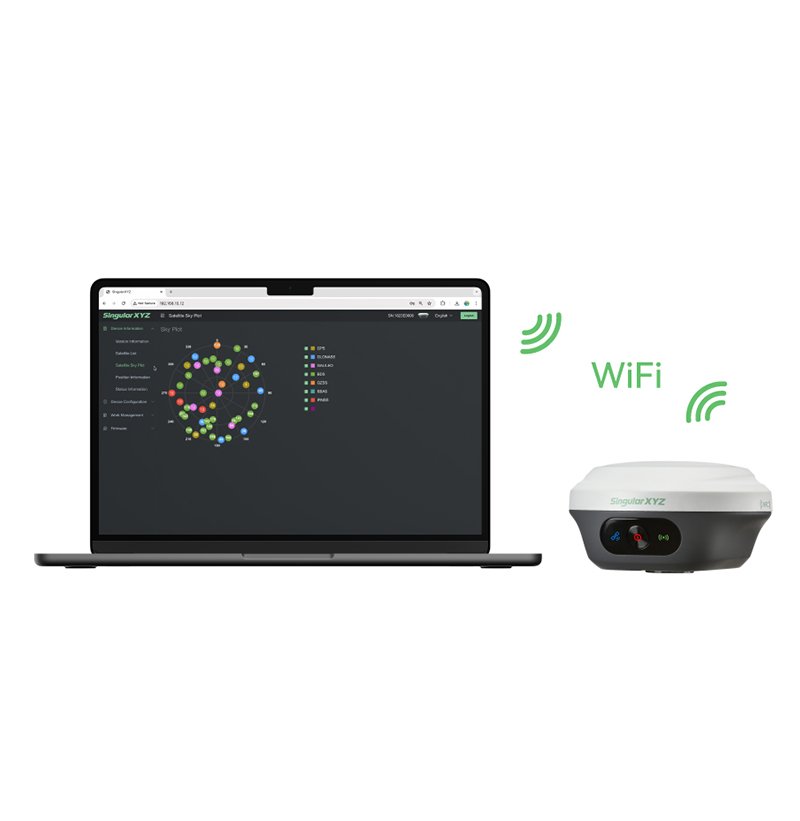

Easy Download via Web UI

Accessed via the WiFi of Z1 GNSS receiver, you can easily login the web page for static data download, firmware upgrade, device status check and configuration.

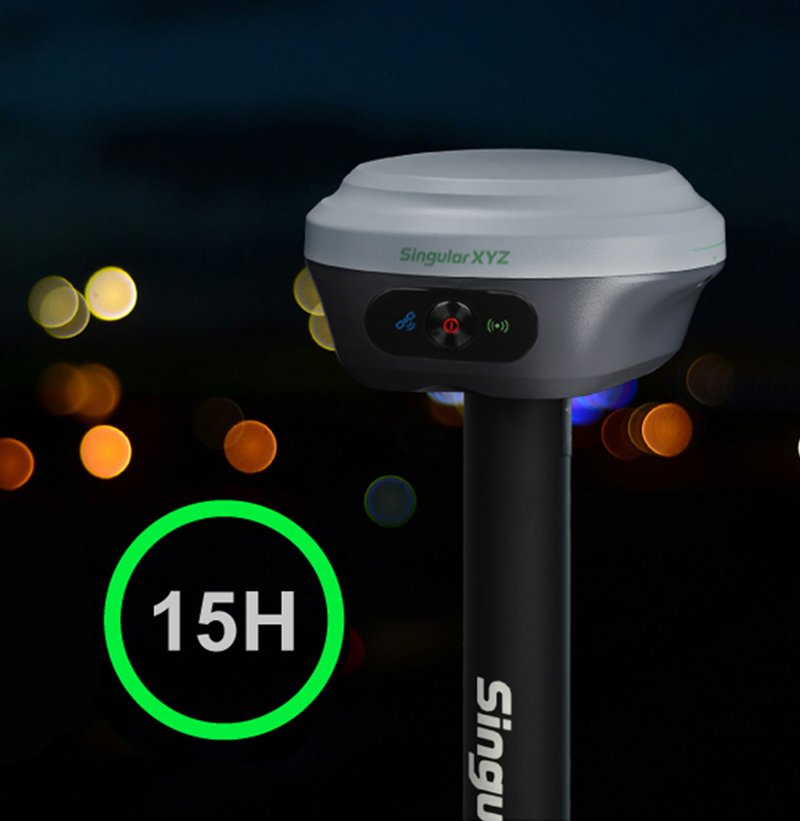

15Hrs Large Battery

Considering the continuity and consistency of outdoor work, Z1 has minimized its size while also ensuring maximum battery life. The 15-hour battery life allows you to work uninterruptedly throughout the day.

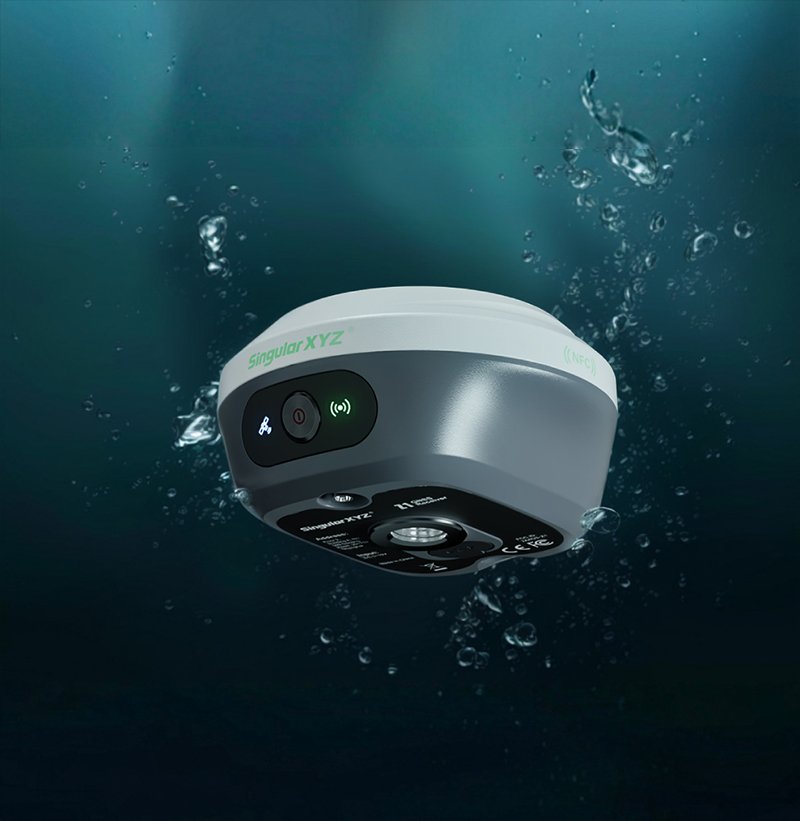

IP67 Rugged Protection

Built to withstand harsh environments, the IP67-rated casing of Z1 provides protection against water, dust, and accidental drops, ensuring uninterrupted performance in the field.
