Powerful, Versatile, Compact, Cost-effective

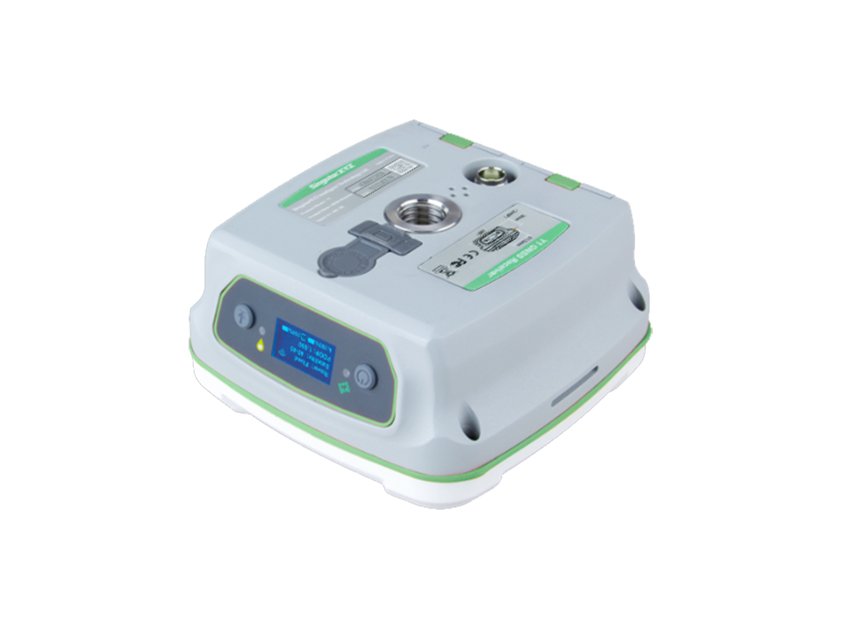

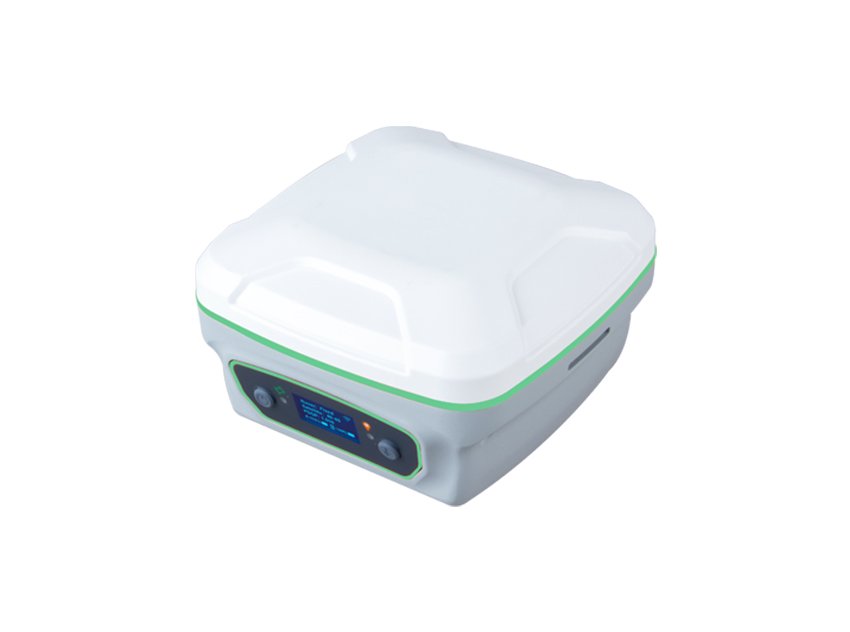

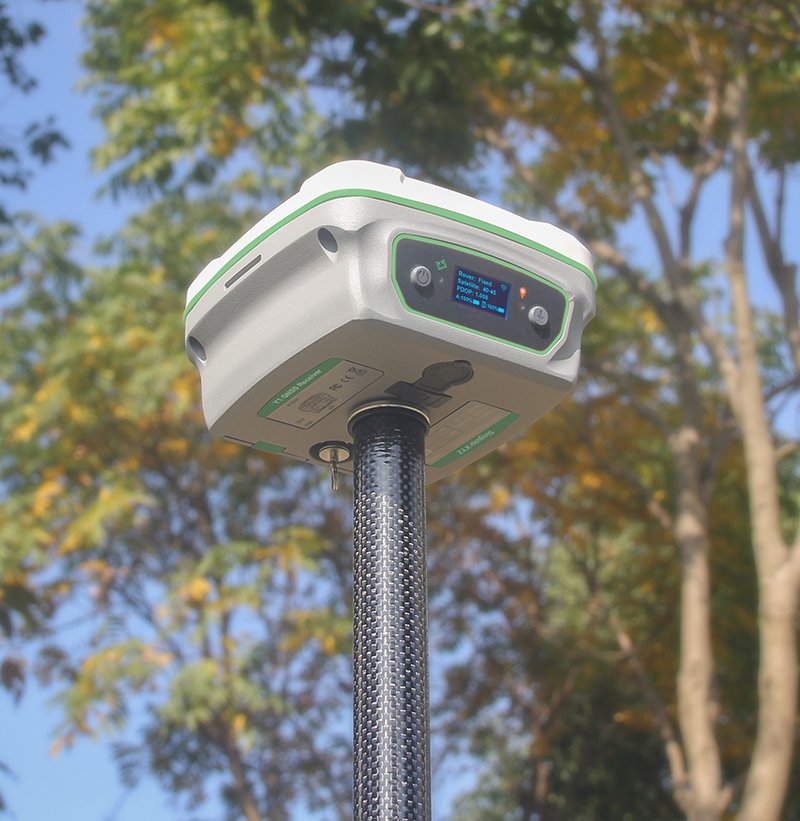

Y1 GNSS Receiver
Full-Constellation
Full-Constellation Tracking
Featuring 1598 channels for full constellation tracking, Y1 can deliver reliable centimeter-level accuracy positioning. Benefiting from the strong signal tracking and advanced RTK algorithm, Y1 shows stable & high fixed rate even in harsh environments.
Flexible Communication
Flexible Communication
Integrated with 4G/UHF/WiFi/Bluetooth/USB/serial port, you can flexibly select the way you need for communication. The enhanced UHF can achieve up to 15km working range with 2W power, reducing your burden without the need of external radio.
Flexible Communication
Flexible Communication
Integrated with 4G/UHF/WiFi/Bluetooth/USB/serial port, you can flexibly select the way you need for communication. The enhanced UHF can achieve up to 15km working range with 2W power, reducing your burden without the need of external radio.

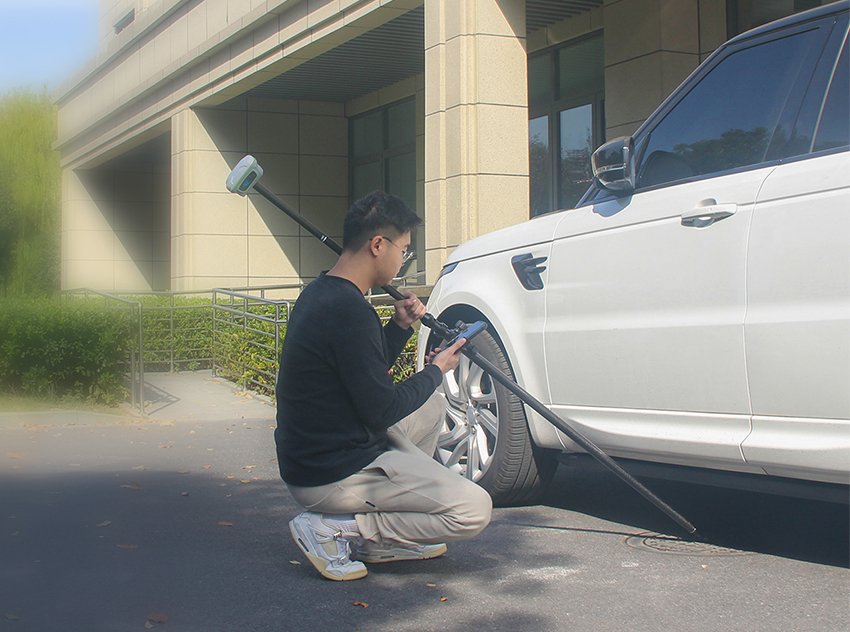

60° Tilt IMU
60° Tilt IMU
The built-in IMU module supports up to 60° tilt surveying while keeping the accuracy within ±2.5cm.
SATELLITES TRACKING
Channels
- 1598
BDS
- B1I, B2I, B3I, B1C, B2a, B2b
GPS
- L1C/A, L1C, L2C, L2P(Y), L5
GLONASS
- G1, G2, G3
Galileo
- E1, E5a, E5b, E6
QZSS
- L1C/A, L1C, L2C, L5
RTK Accuracy
- 8mm+1ppm Horizontally
- 15mm+1ppm Vertically
COMMUNICATION
4G modem
- Support
UHF modem
- Up to 15km with optimal conditions
Bluetooth
- BT4.0
NFC
- Support
WiFi
- IEEE 802.11 a/b/g/n 2.4G 5G
Interface
- -1 7-pin lemo port for RS232
- -1 SIM card slot for 4G
- -1 TNC connector for UHF antenna
GENERAL
WebUI
- Accessible via Wi-Fi
Battery
- 2×3300mAh, more than 12 hours working time
Size
- 12.3 × 12.3 × 7.0cm
Weight
- 834 g, with batteries inside
Waterproof & Dustproof
- IP67

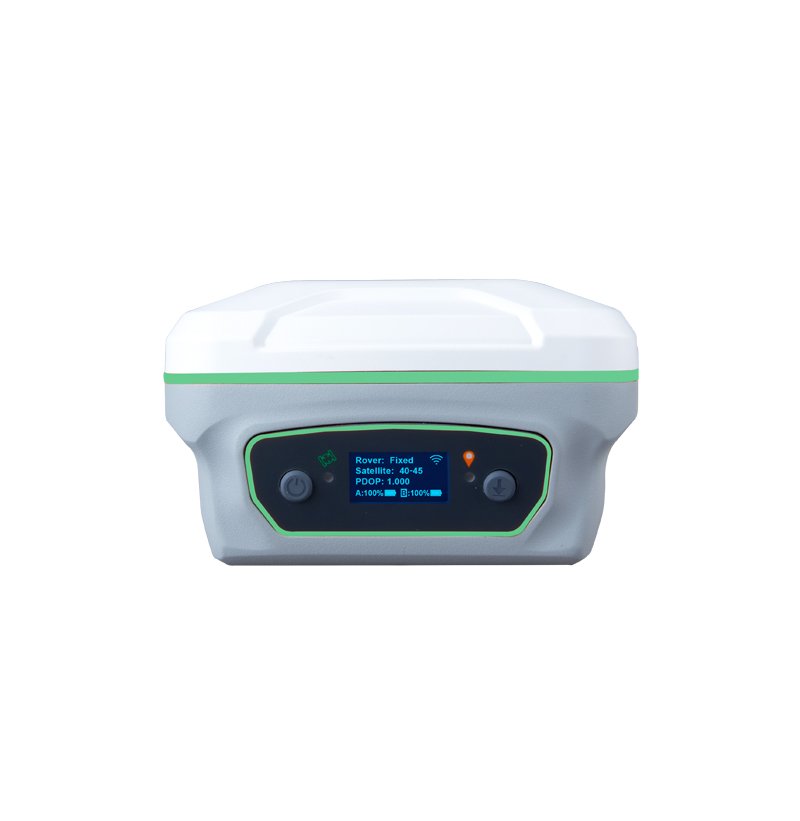

OLED & Web UI

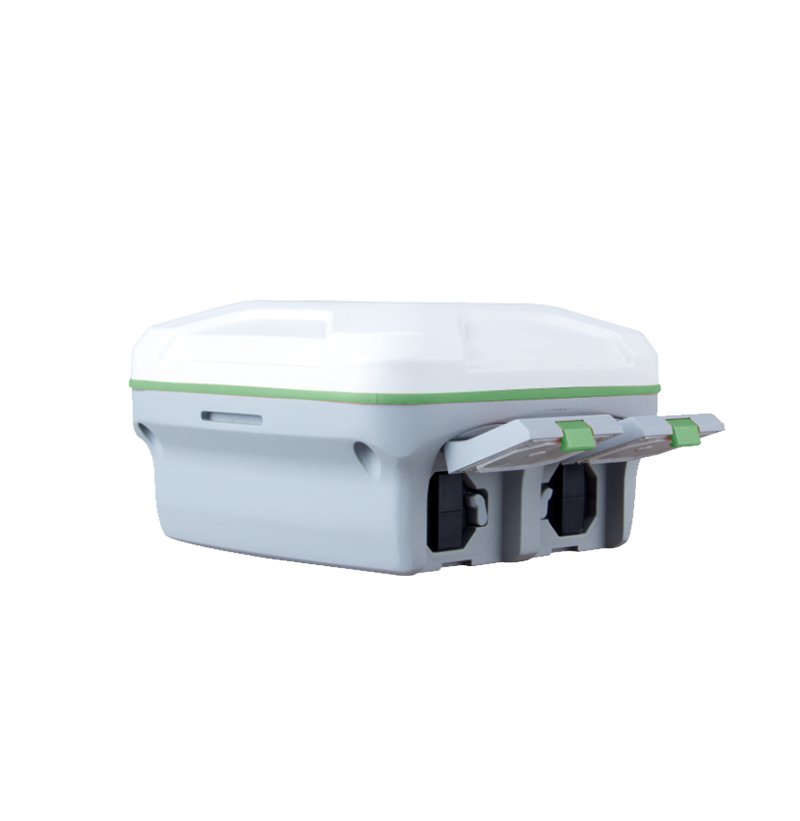

6600mAh Batteries
