Xbase GNSS Receiver

Built for Distance, Built for Base

Xbase GNSS Receiver

Back

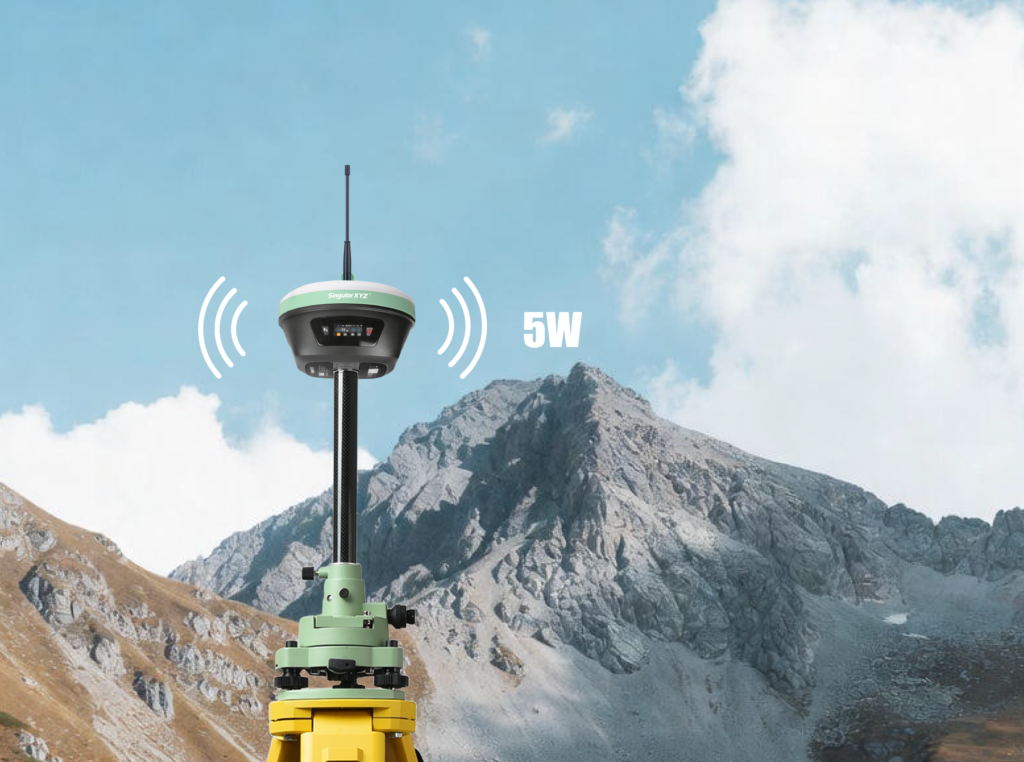

Long-range 5W Radio

Long-range 5W Radio

Designed as a dedicated base station, Xbase integrates a top-mounted antenna and a built-in 5W radio to reach up to 25 km in ideal conditions. It supports mainstream radio protocols and features an internal 4G module, enabling both radio-based and network-based RTK operation.

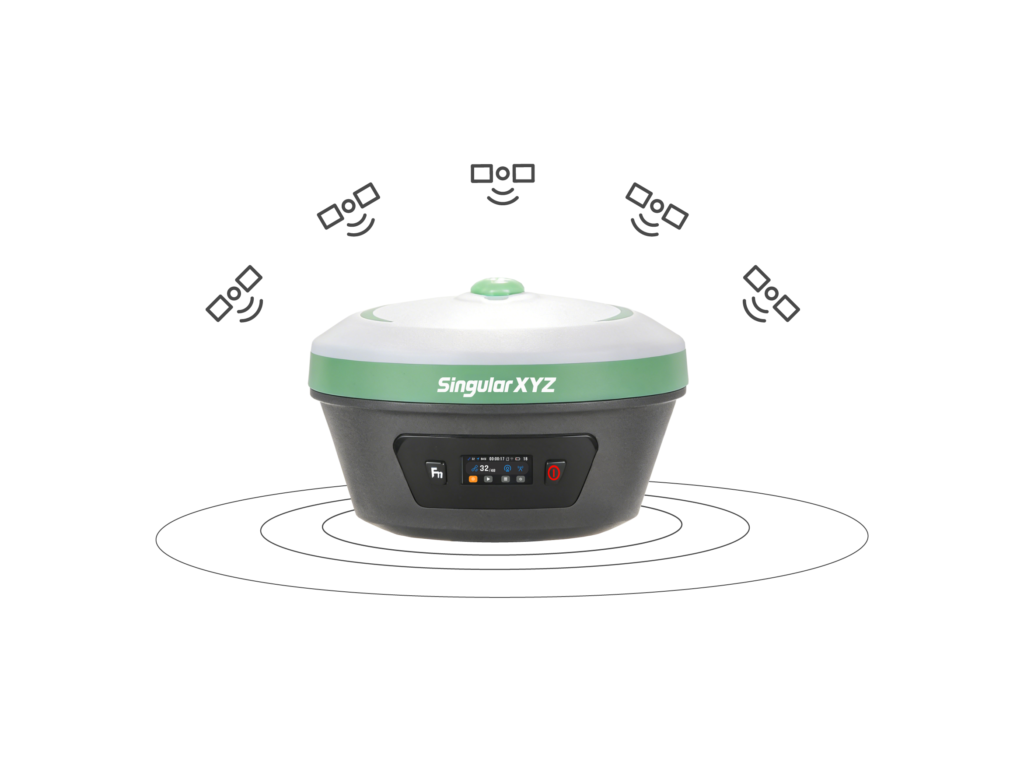

Full-Constellation

Full-Constellation, Reliable Corrections

Powered by a 1408-channel GNSS engine, Xbase supports full-constellation tracking with strong anti-interference performance, delivering stable, high-quality correction data for reliable RTK operation in challenging field environments.

Full-Constellation

Full-Constellation, Reliable Corrections

Powered by a 1408-channel GNSS engine, Xbase supports full-constellation tracking with strong anti-interference performance, delivering stable, high-quality correction data for reliable RTK operation in challenging field environments.

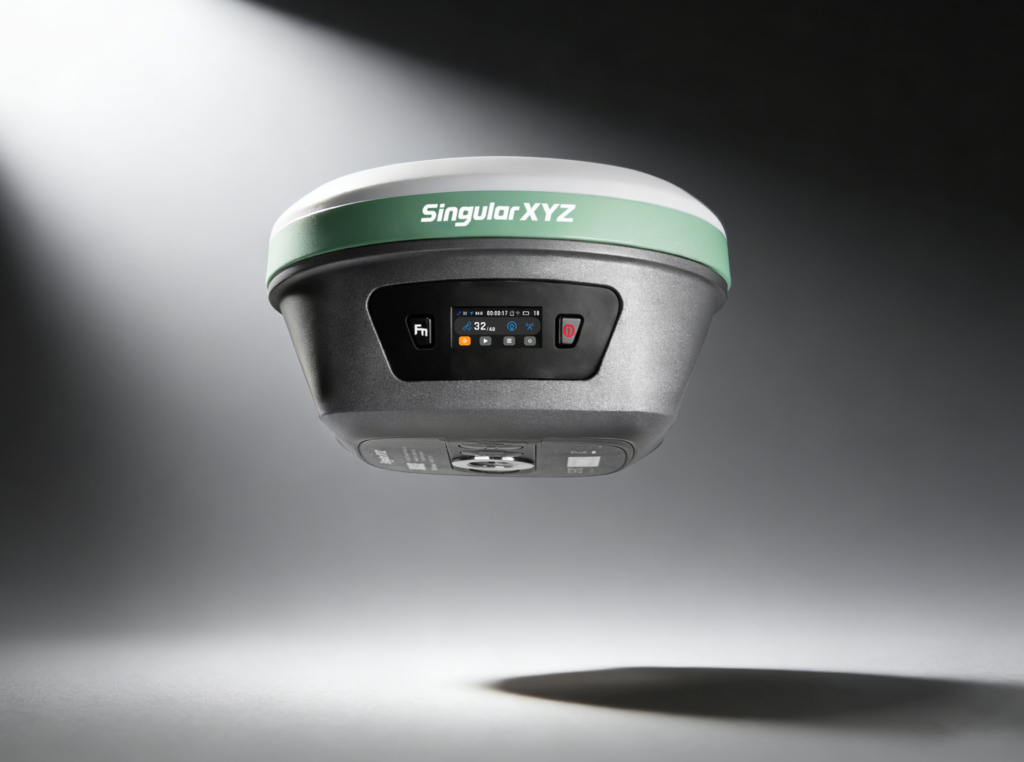

1.1” Front Display

Large HD Color Screen

The 1.1-inch front display provides clear status visibility and simple configuration access, allowing users to monitor key information and complete basic setup quickly in the field.

SATELLITES TRACKING

Channels

  • 1408

BDS

  • B1I, B2I, B3I, B1C, B2a, B2b

GPS

  • L1C/A, L1C, L2C, L2P(Y), L5

GLONASS

  • G1, G2, G3

Galileo

  • E1, E5a, E5b, E6

QZSS

  • L1C/A, L1C, L2C, L5

RTK Initialization Time

  • <5s (typical)

RTK Accuracy

  • 8mm+1ppm Horizontally
  • 15mm+1ppm Vertically

Re-acquisition

  • <1s
COMMUNICATION

UHF modem

  • - Frequency range: 410-470MHz
  • - Protocol: TRIMATLK, SATEL, TRANSEOT, TRIMMARK3, CSS, etc.
  • - Channel spacing: 25KHz
  • - Transmit power: 2W~5W selectable

Bluetooth

  • BT4.0 dual mode

NFC

  • Support

4G modem

  • Support

WiFi

  • 802.11 a/b/g/n/ac

Interface

  • - 1 7-pin lemo port for RS232
  • - 1 TNC connector for UHF antenna
  • - 1 Type-C USB port
  • - 1 SIM card slot for 4G
GENERAL

WebUI

  • Accessible via Wi-Fi

Battery

  • 13200 mAh, 15 Hours Working Time in Radio Base Mode

Size

  • Φ145mm × 93mm

Weight

  • 1204g

Waterproof & Dustproof

  • IP68

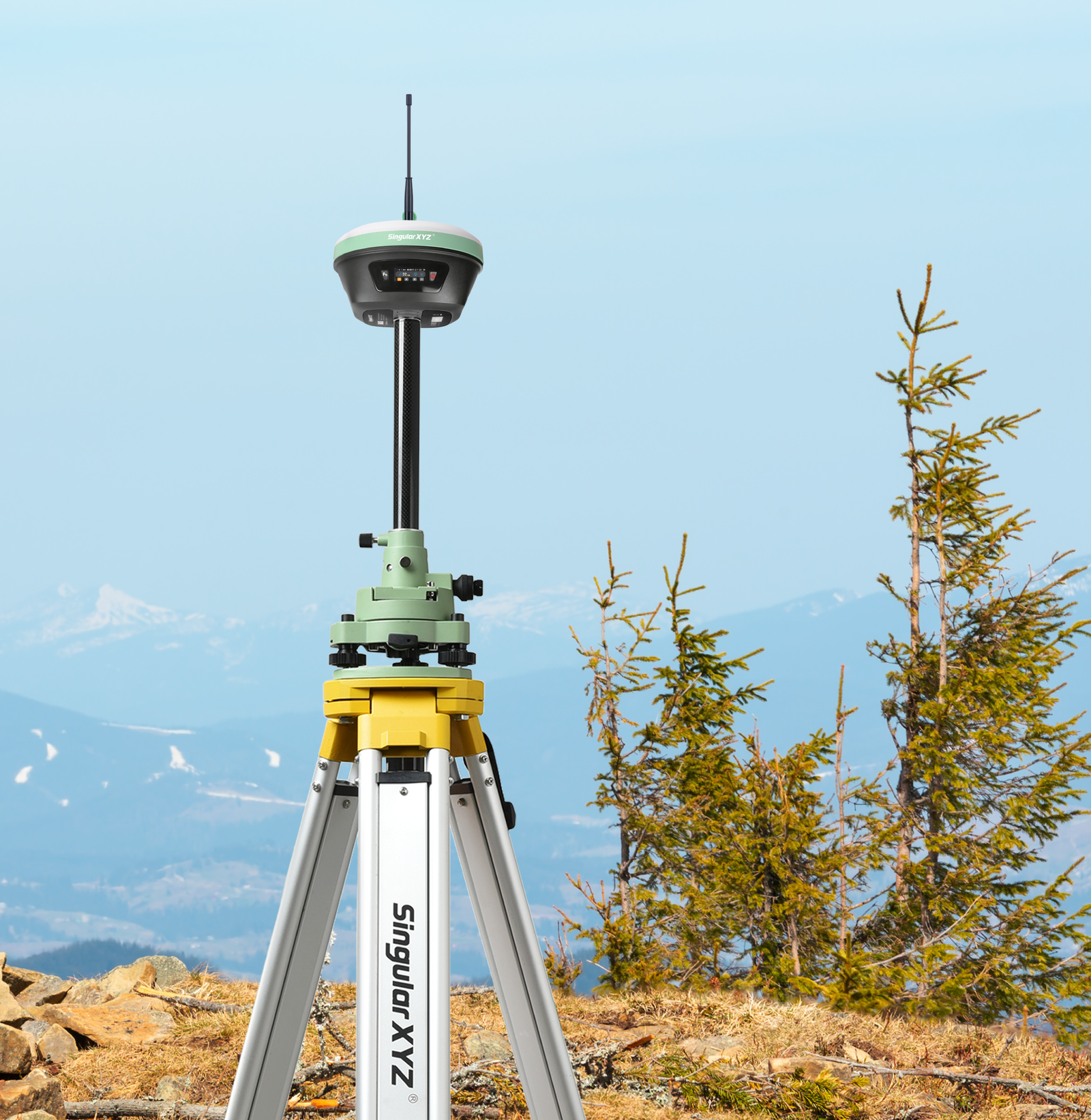

Smart Base Station

Xbase supports auto-startup as a smart base station, enabling one-click activation of radio mode to broadcast correction data without additional configuration or software. By automatically recording previous base station locations and re-matching them when restarted within a 5m range, Xbase ensures consistent reference positioning with minimal on-site setup

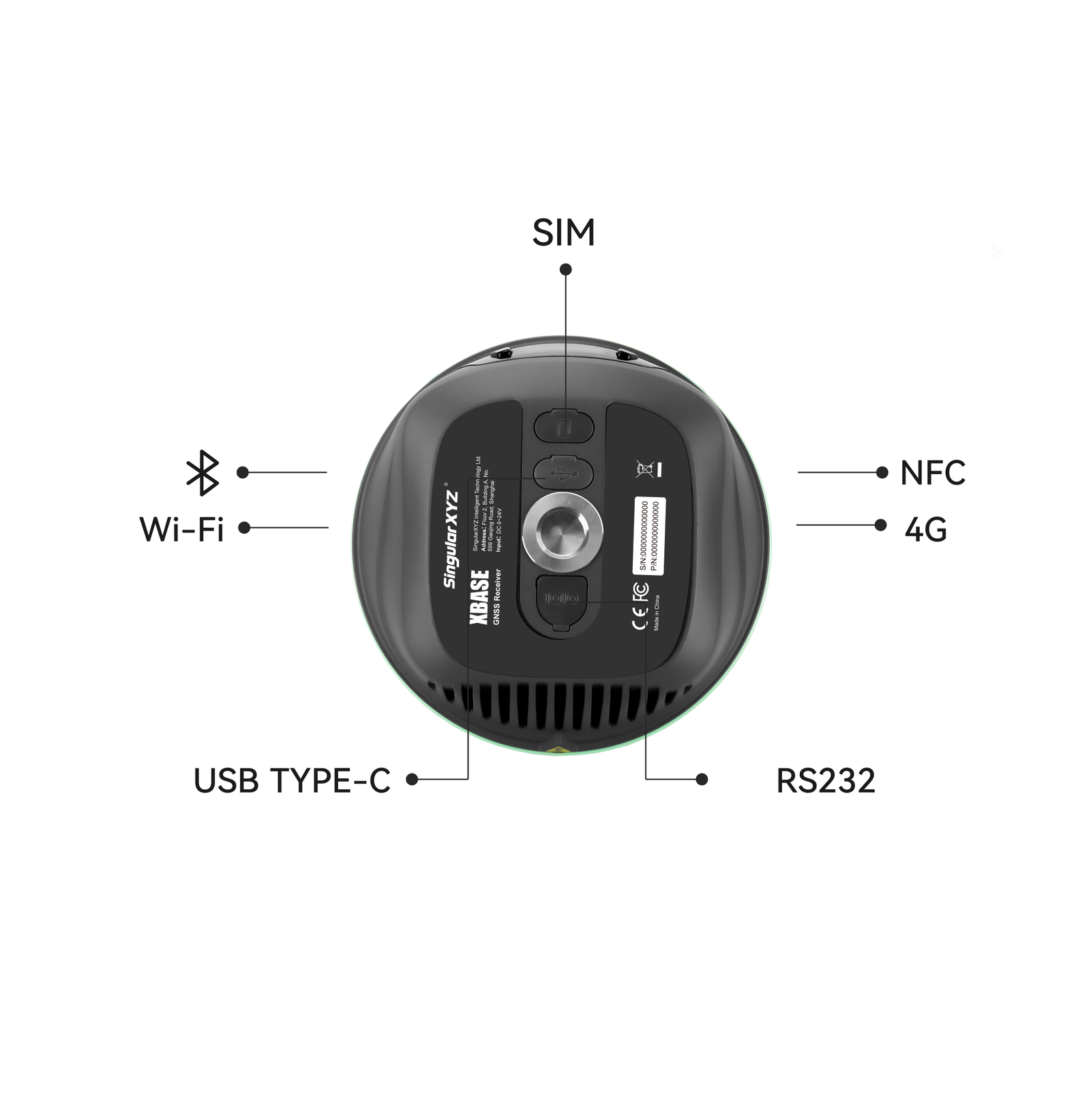

Abundant Transmission

With flexible transmission options including WiFi webpage, Bluetooth, USB, and RS232, Xbase supports smooth configuration and stable data communication, ensuring efficient integration into various field workflows.

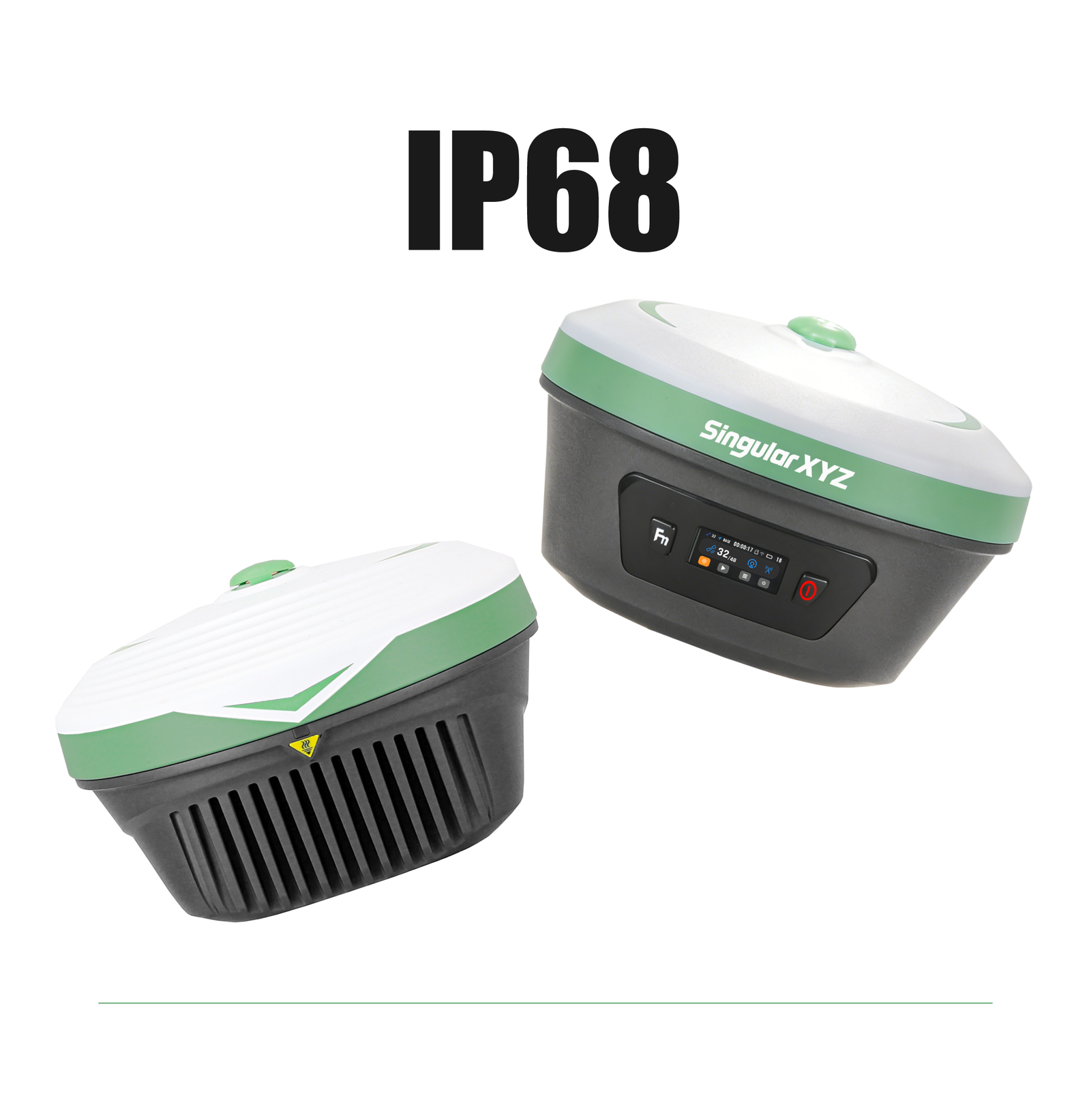

IP68 Durable Design

Xbase is engineered for demanding environments with IP68 protection, a robust magnesium-aluminium housing, heat-dissipating fins, and solid drop resistance, delivering long-lasting durability and reliable performance in harsh field conditions.

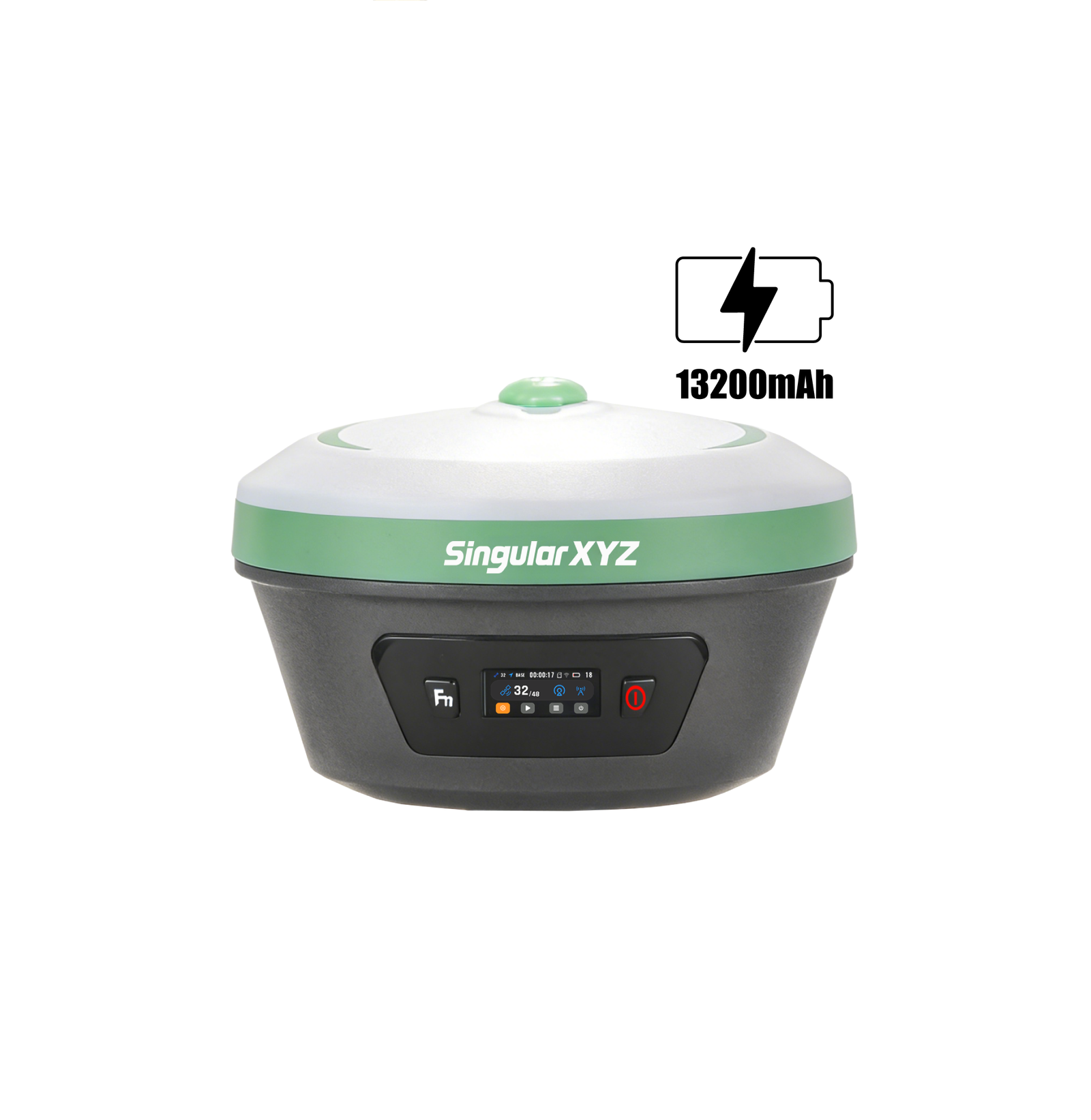

13200mAh Battery

Equipped with a 13,200mAh high-capacity battery, Xbase ensures dependable, uninterrupted operation throughout the entire day, reducing the need for external power and enhancing field productivity.
