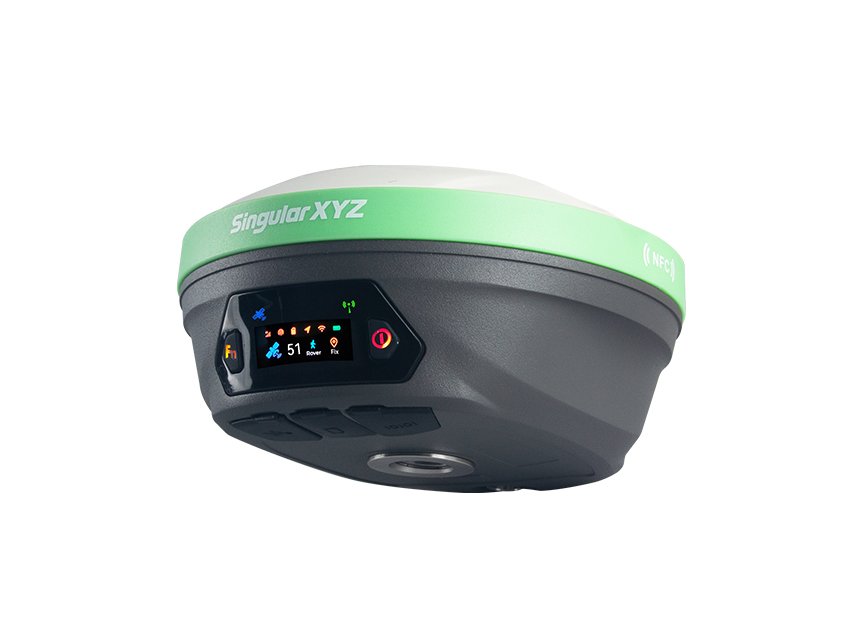

X1 Pro GNSS Receiver

Larger HD Color Screen, One RTK For All Your Needs

X1 Pro GNSS Receiver

Back

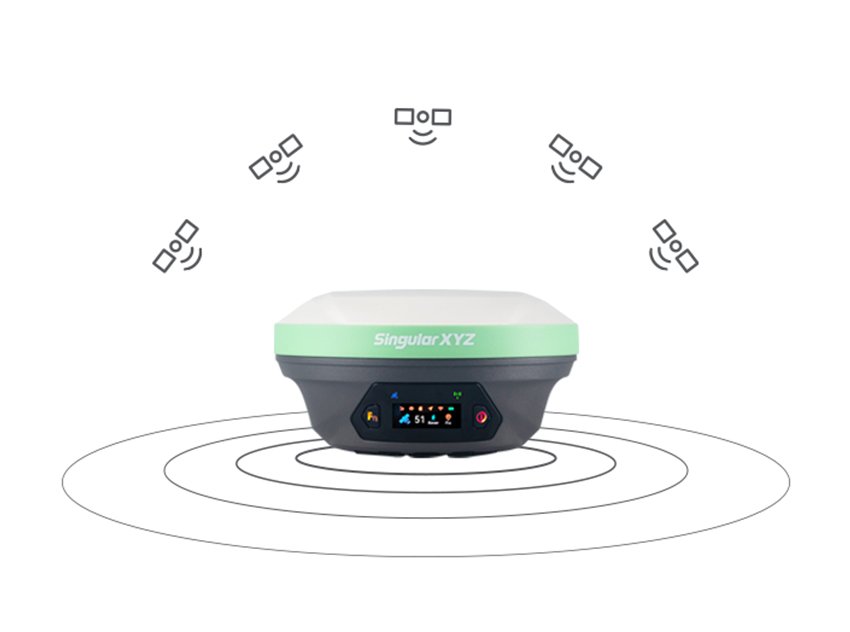

Full-Constellation

Full-Constellation, Fixed in Seconds

Full-constellation tough signal tracking, robust anti-interference and advanced RTK algorithm, X1 Pro takes only a few seconds to get a stable fixed solution even in challenging environments like multipath, tree canopy, city canyons, etc.

HD Color Screen

Large HD Color Screen

For the convenience of users, the X1 Pro GNSS receiver is designed with a 1.1” large HD color screen for clear status checking and easy configuration.

HD Color Screen

Large HD Color Screen

For the convenience of users, the X1 Pro GNSS receiver is designed with a 1.1” large HD color screen for clear status checking and easy configuration.

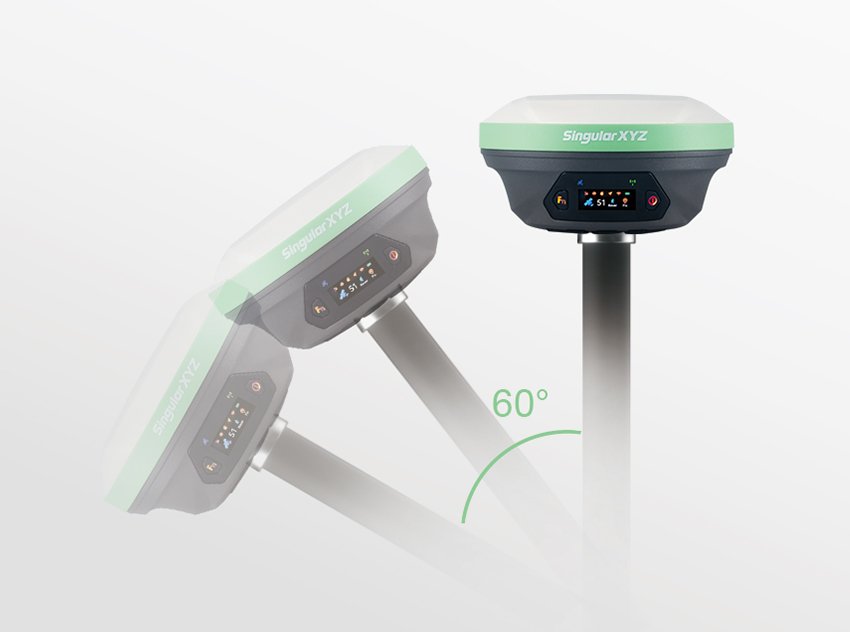

60° Tilt Surveying

60° Tilt, 5s Initialization

Optimized with the new generation of IMU module, you can easily initialize the IMU in just 5 seconds and start tilt measurements up to 60°. One initialization can meet the accuracy requirement of 2.5cm for the whole work.

SATELLITES TRACKING

Channels

  • 1408

BDS

  • B1I, B2I, B3I, B1C, B2a, B2b

GPS

  • L1C/A, L1C, L2C, L2P(Y), L5

GLONASS

  • G1, G2, G3

Galileo

  • E1, E5a, E5b, E6

QZSS

  • L1C/A, L1C, L2C, L5

RTK Accuracy

  • 8mm+1ppm Horizontally
  • 15mm+1ppm Vertically
COMMUNICATION

4G modem

  • Support

UHF modem

  • Up to 15km with optimal conditions

Bluetooth

  • BT4.0 dual mode

NFC

  • Support

WiFi

  • 802.11 a/b/g/n/ac

Interface

  • - 1 7-pin lemo port for RS232
  • - 1 SIM card slot for 4G
  • - 1 TNC connector for UHF antenna
  • - 1 Type-C USB port
GENERAL

WebUI

  • Accessible via Wi-Fi

Battery

  • 6700 mAh, over 20 hours working time

Size

  • Φ133.5 mm × 67 mm

Weight

  • 870 g

Waterproof & Dustproof

  • IP68

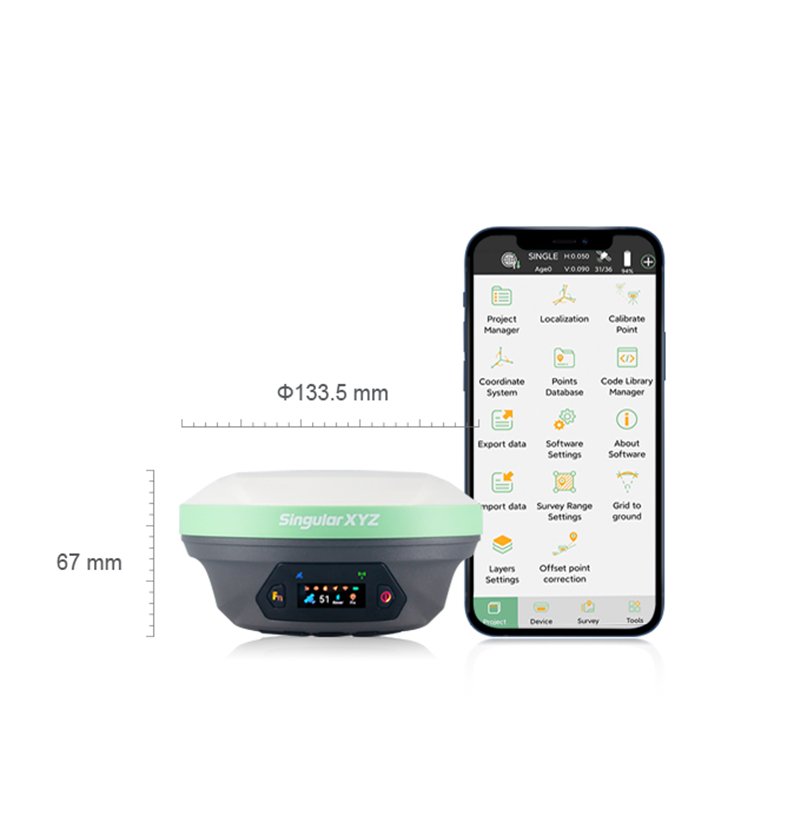

Smaller, Lighter

Does ultra-versatile mean heavy and bulky? X1 Pro GNSS receiver gives the best answer. With Φ133.5 mm × 67 mm palmed size and 870g light weight, X1 Pro largely lights your burden in while keeping your best surveying experience.

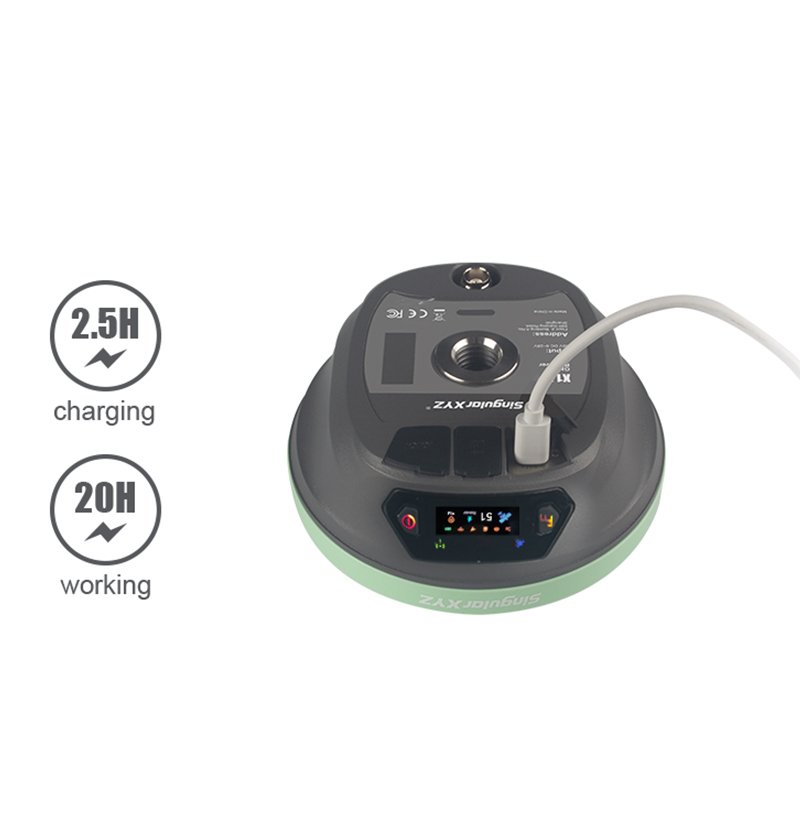

Over 20hrs Operation

Quitting removable batteries, X1 Pro has optimized charging safety, waterproof capability and internal stacking design. 3hrs of fast charging via Type-C interface can support over 20 hours continuous working time. It can also be charged via power bank, realize charging on-the-go.

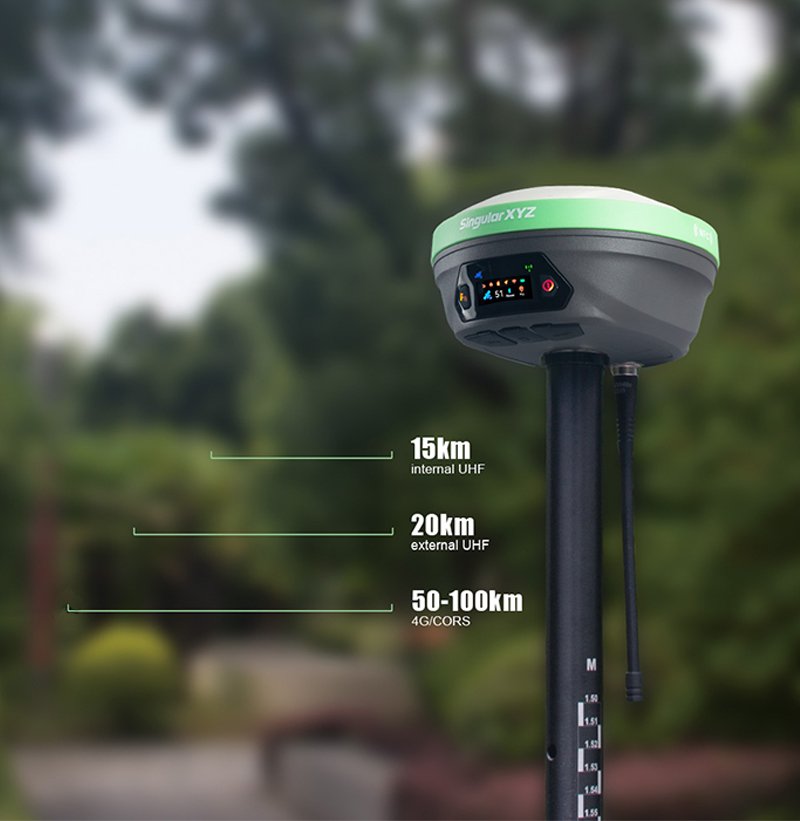

Ultra-Long Baseline

Supporting both 4G/radio correction data transmission, in optimal conditions, X1 Pro can reach up to 15km range in enhanced internal UHF mode, 20km range in external mode and over 50km via internal GSM or PDA CORS mode.

Abundant Transmission

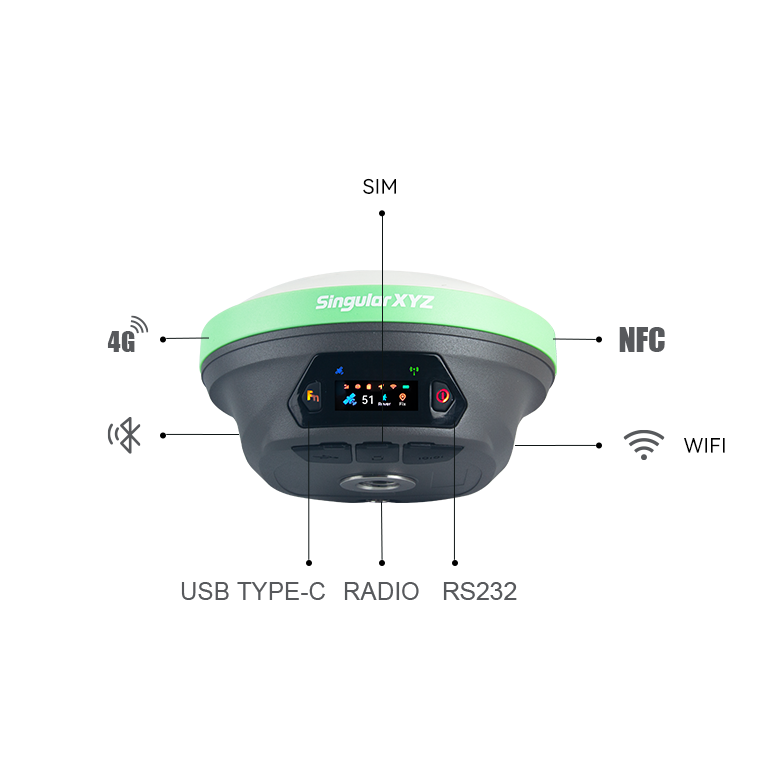

In order to meet different uses, X1 Pro has integrated with NFC/Bluetooth for quick connection, Type-C USB for charging & upgrade, TNC connector for internal UHF, RS232 serial port to connect with external radio and WiFi/4G.

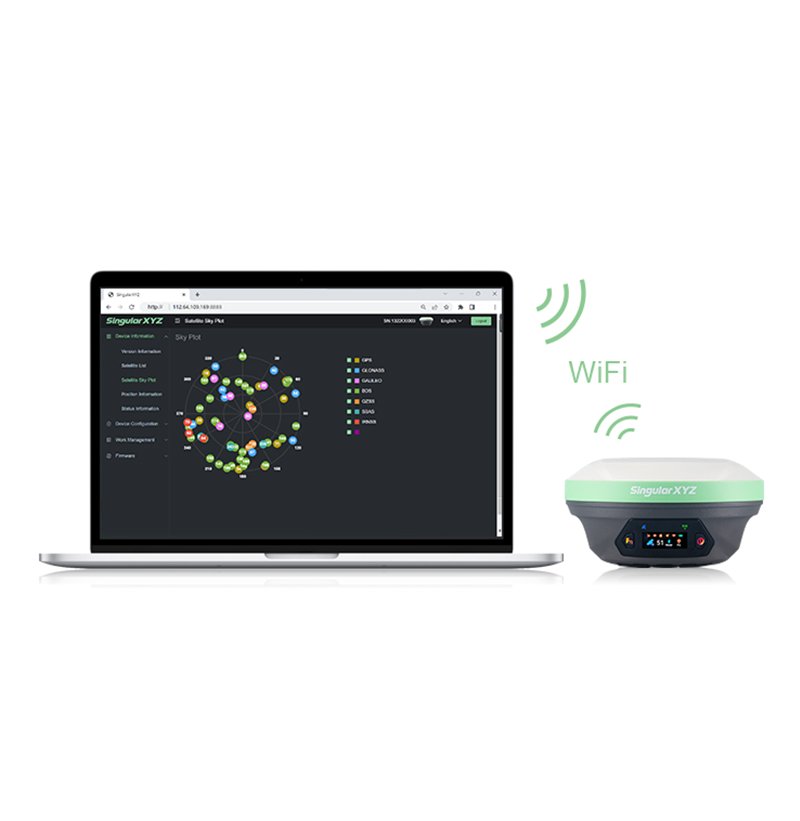

Easy Download via Web UI

Accessed via the WiFi of X1 Pro, you can easily login the web page for static data download, firmware upgrade, device status check and configuration.

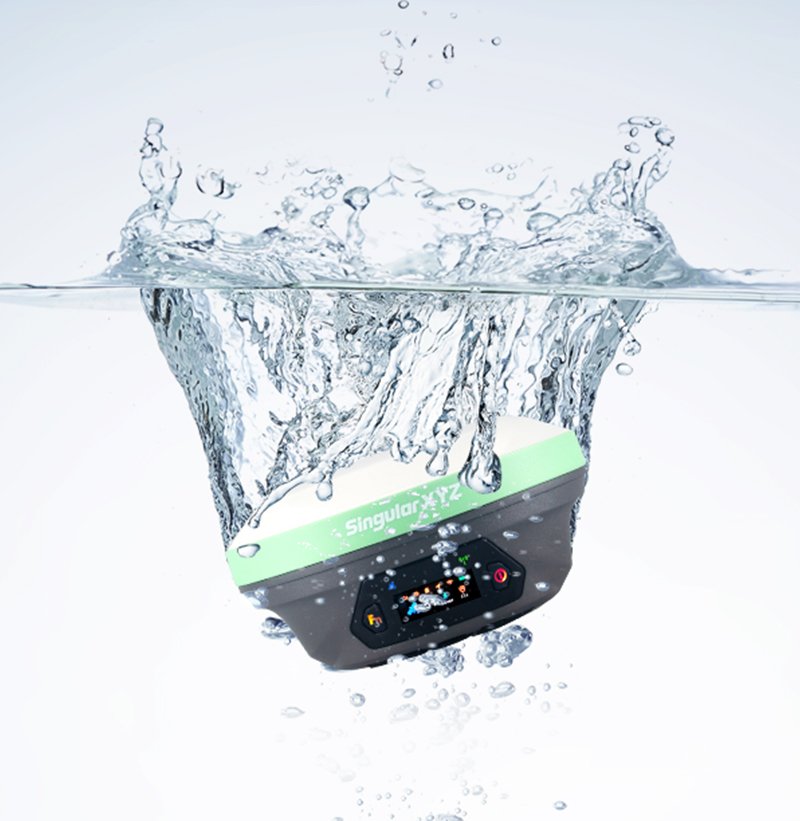

IP68 Durable Design

No matter it's rainy or dust weather, or you've accidently drop it onto the concrete or into the water, the durable housing of X1 Pro can always protect your device from damage.
