Orion ONE AR GNSS Receiver

Starlight-Grade Camera, Immersive AR Stakeout

Orion ONE AR GNSS Receiver

Back

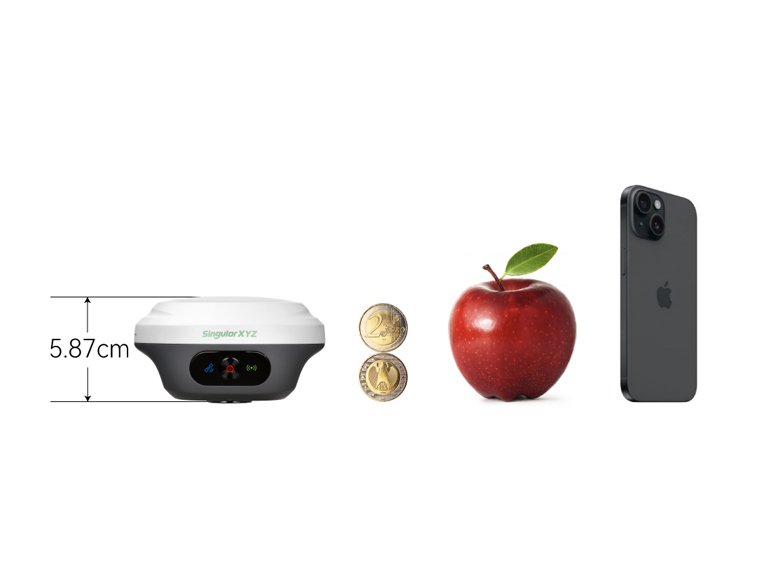

Mini in Hand

Mini in Hand, Mighty in Survey

Orion ONE-AR is crafted with a compact Φ107 mm × 58.7 mm palm-sized design, reducing the burden on surveyors while delivering powerful performance and versatile functionality.

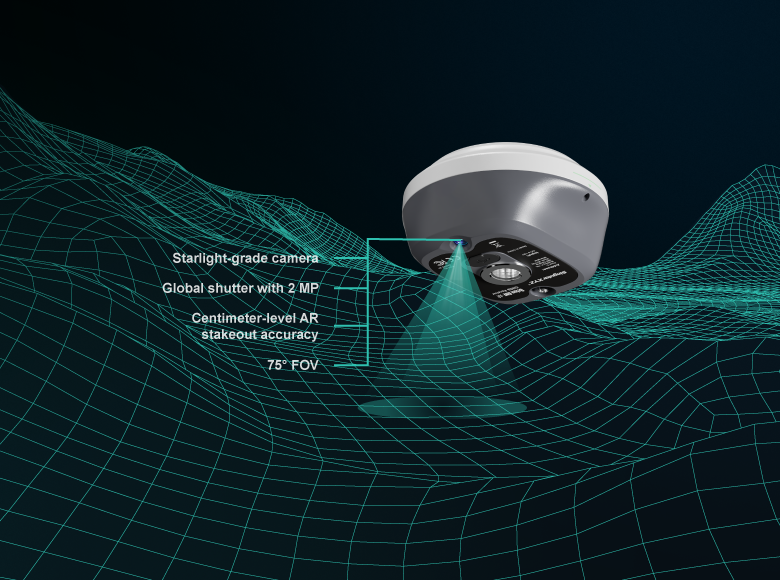

Camera AR Stakeout

Visual Stakeout with Camera

Orion ONE-AR’s 2MP starlight-grade camera offers intuitive visual stakeout, supporting centimeter-level AR guidance with a 75° field of view for accurate results, even in low-light conditions.

Camera AR Stakeout

Visual Stakeout with Camera

Orion ONE-AR’s 2MP starlight-grade camera offers intuitive visual stakeout, supporting centimeter-level AR guidance with a 75° field of view for accurate results, even in low-light conditions.

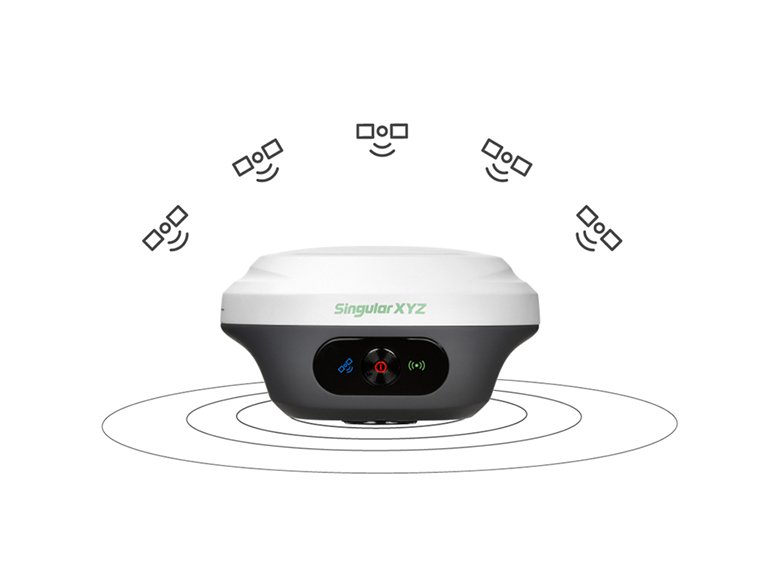

Full-Constellation

Full-Constellation Tracking

Orion ONE-AR supports full-constellation signal tracking with advanced anti-interference algorithms, ensuring fast and reliable FIX even in complex environments such as city canyons or dense forests.

SATELLITES TRACKING

Channels

  • 1408

BDS

  • B1I, B2I, B3I, B1C, B2a, B2b

GPS

  • L1C/A, L1C, L2C, L2P(Y), L5

GLONASS

  • G1, G2, G3

Galileo

  • E1, E5a, E5b, E6

QZSS

  • L1C/A, L1C, L2C, L5

RTK Accuracy

  • 8mm+1ppm Horizontally
  • 15mm+1ppm Vertically
GENERAL

WebUI

  • Accessible via Wi-Fi

Battery

  • - 4200 mAh, up to 12 Hours Working Time
  • - Fast Charge of 3 Hours Charging Time

Size

  • Φ107 mm × 58.7 mm

Weight

  • 547 g

Waterproof & Dustproof

  • IP67
VISUAL SENSOR

Sensor Type

  • Camera

Pixel

  • Global Shutter with 2 MP

Feature

  • Starlight-grade Camera, HD Capture in Weak
  • Light Environment

AR Stakeout

  • 8mm+1ppm Horizontally
  • 15mm+1ppm Vertically
COMMUNICATION

UHF Modem

  • Up to 15km with optimal conditions

Bluetooth

  • BT4.0 Dual Mode

WiFi

  • 802.11 a/b/g/n/ac

Interface

  • Type-C Interface for Data Transmission and Charging

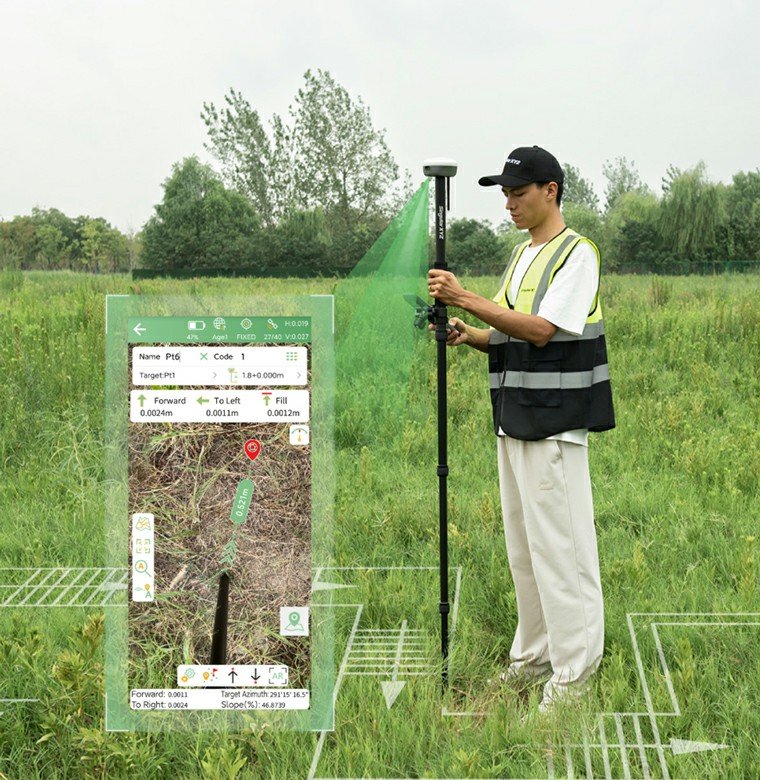

Immersive AR Experience 50% Higher Efficiency

Orion ONE-AR's visual AR stakeout allows surveyors to locate stakeout points directly in the real world, improving accuracy by over 50% compared to traditional methods—no prior experience needed.

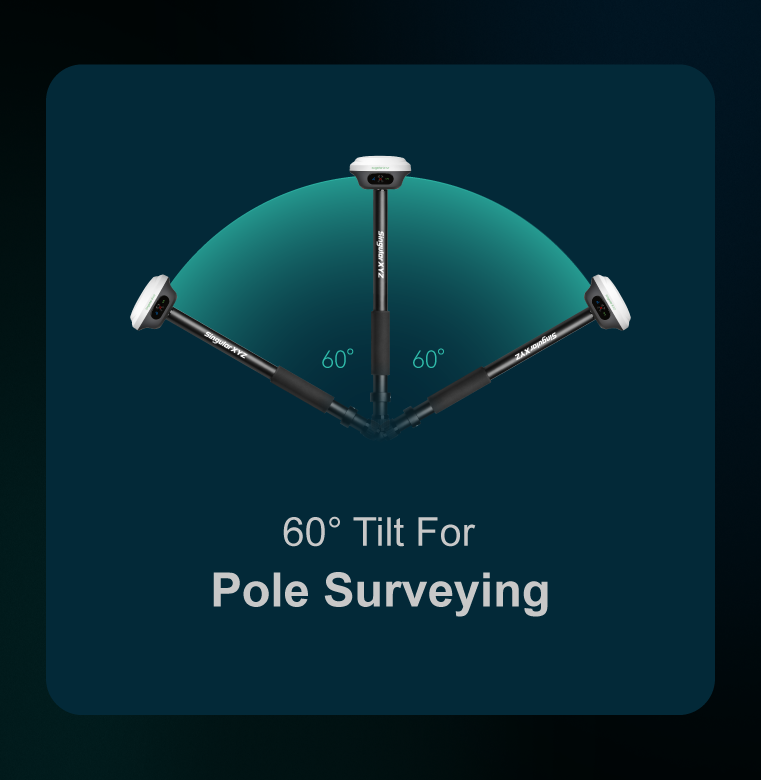

60° Tilt Surveying

With a high-performance IMU, Orion ONE-AR supports up to 60° tilt range for both pole surveying and AR visual stakeout, greatly increasing working efficiency and possibility.

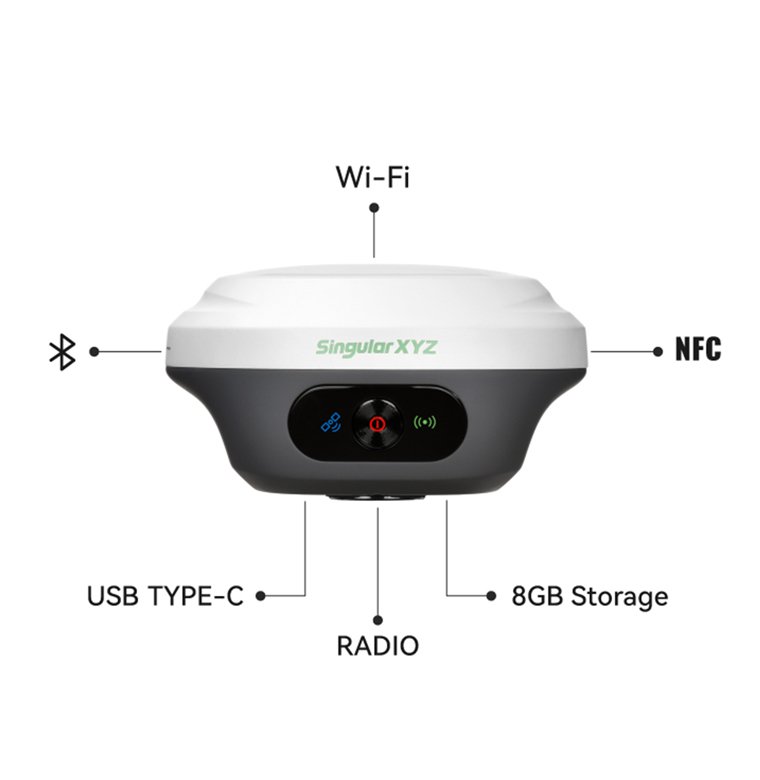

Versatile Transmission

With integrated NFC, Bluetooth, WiFi, USB Type-C and 8GB onboard storage, Orion ONE-AR offers versatile connectivity options, making data transfer and device management effortless.

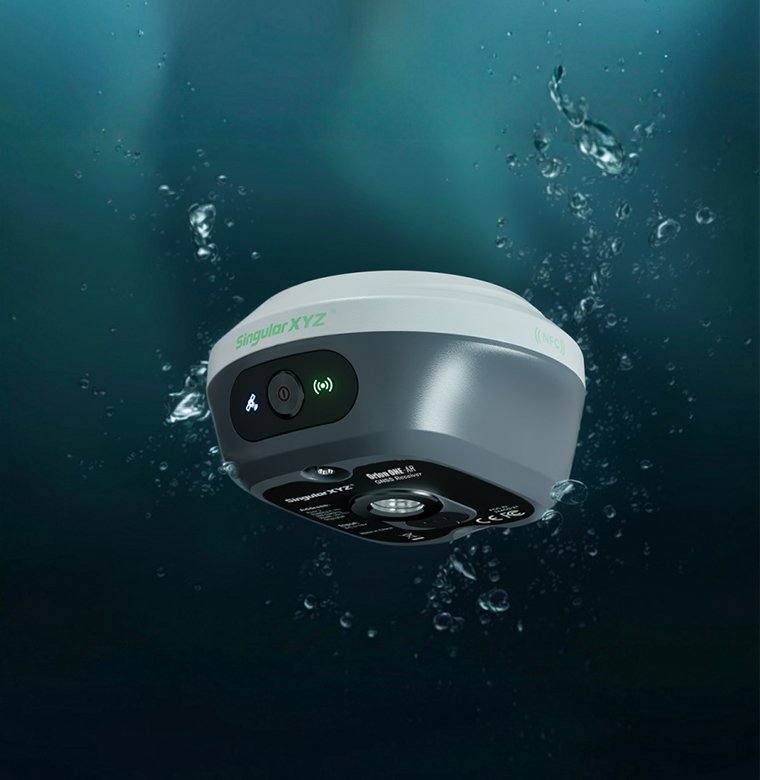

IP67 Rugged Protection

Built to withstand harsh environments, the IP67-rated casing of Orion ONE-AR provides protection against water, dust, and accidental drops, ensuring uninterrupted performance in the field.

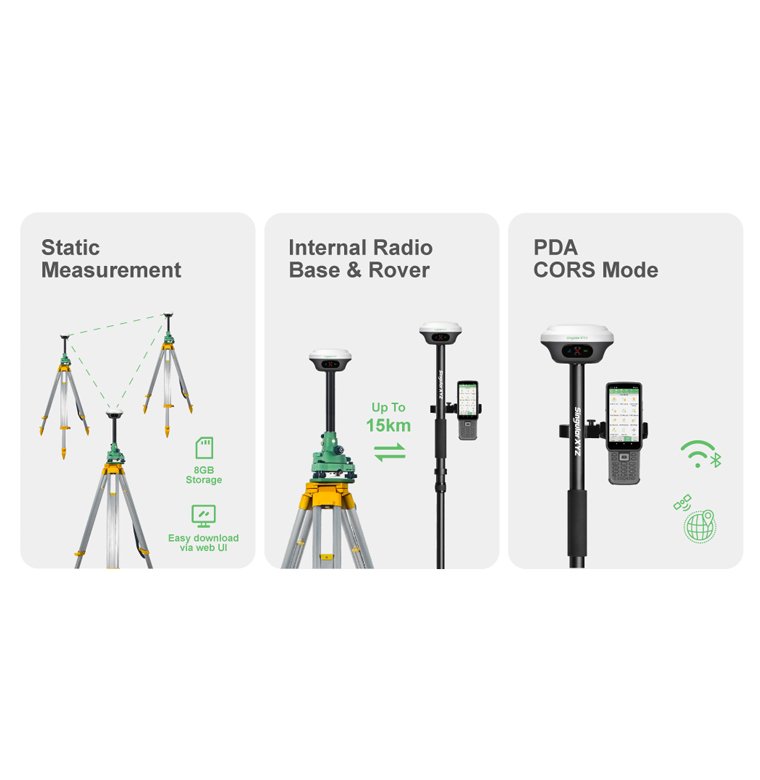

Flexible Work Modes

- Static Measurement: Record static with 8GB storage, downloadable via web UI. - Internal Radio Mode: Achieve up to 15km range with the built-in UHF radio. - PDA CORS Mode: Connect through Bluetooth, easily access to local CORS via PDAs.
