AL 15 Automatic Level

Essential Accuracy, Built for the Field

AL15 AUTOMATIC LEVEL

Back
Reliable Accuracy

Reliable Leveling Accuracy

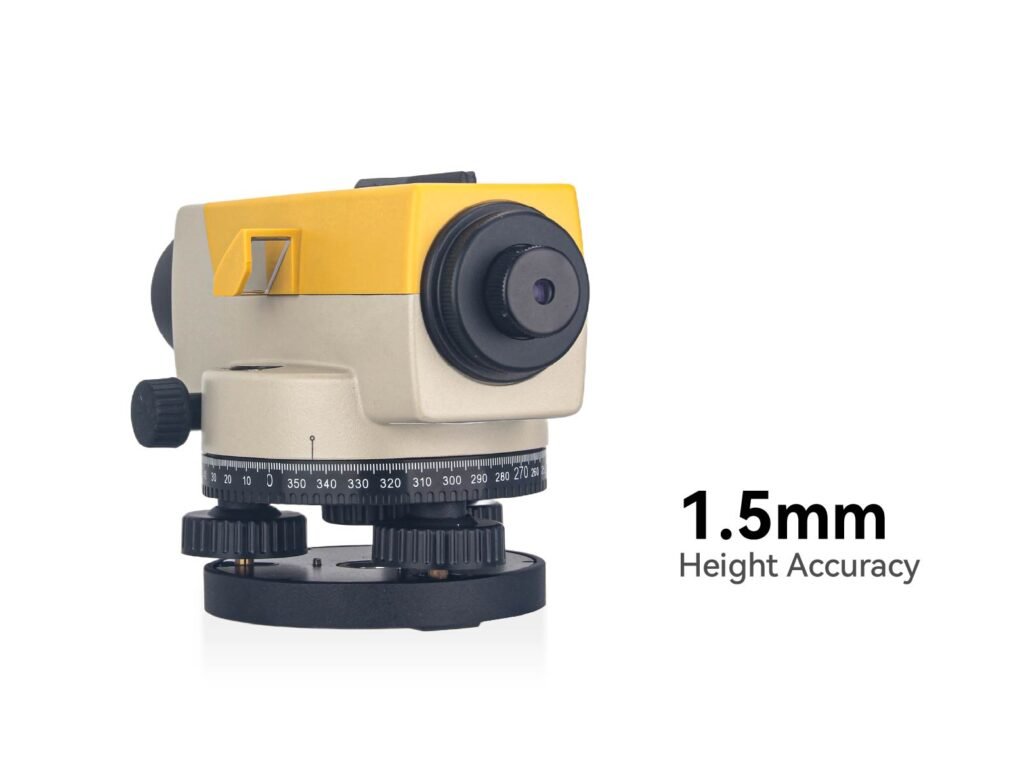

With a standard deviation of 1.5 mm per 1 km double-run using invar staff, the AL15 offers reliable height measurement results for everyday leveling jobs such as construction layout, earthwork, etc.

Clear Optics

Bright & Clear Optics

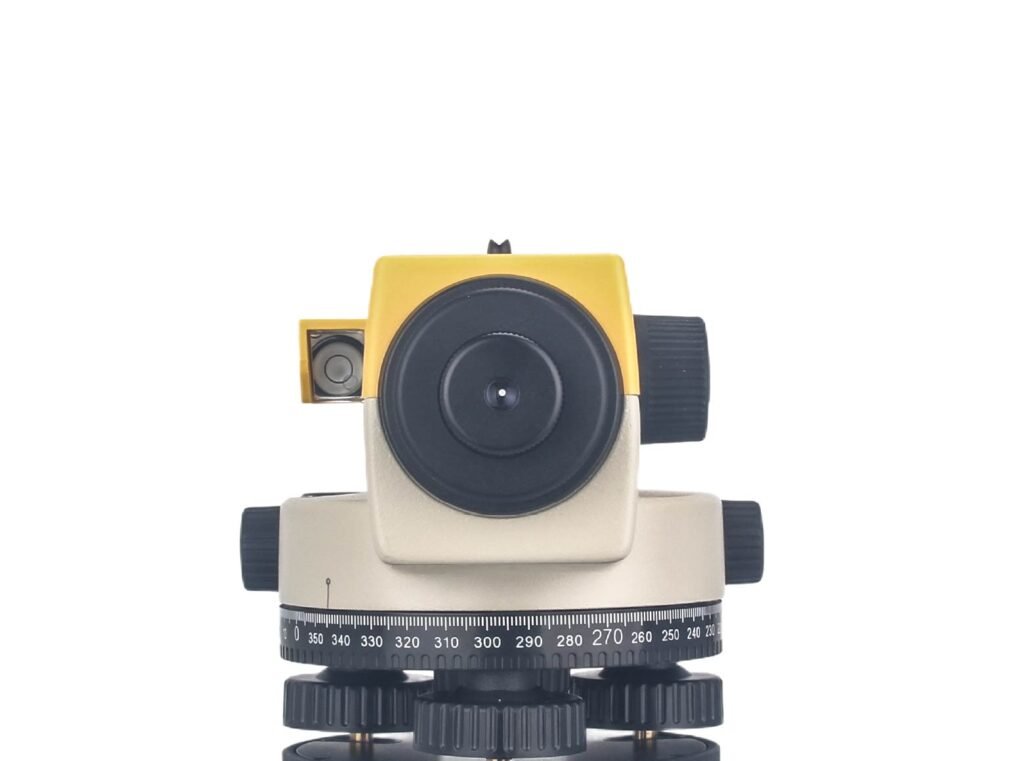

Equipped with a 32× erect image telescope and a 40 mm objective aperture, the AL15 delivers a wide, bright field of view (1°30′), allowing clear sighting and precise targeting even in poor lighting.

Clear Optics

Bright & Clear Optics

Equipped with a 32× erect image telescope and a 40 mm objective aperture, the AL15 delivers a wide, bright field of view (1°30′), allowing clear sighting and precise targeting even in poor lighting.

Magnetic Compensator

Magnetic Compensator Stability

The magnetic-damped compensator features a ±12′ working range with ±0.4″ accuracy, ensuring quick automatic leveling and reliable performance on uneven ground.

GENERAL

DisplayStandard Deviation
(1 km Double Run, Invar Staff)

  • 1.5 mm

Magnification

  • 32x

Field of view

  • 1°30’

Shortest Focusing Distance

  • 0.6 m

Objective Aperture

  • 40 mm
PHYSICAL & ENVIRONMENTAL

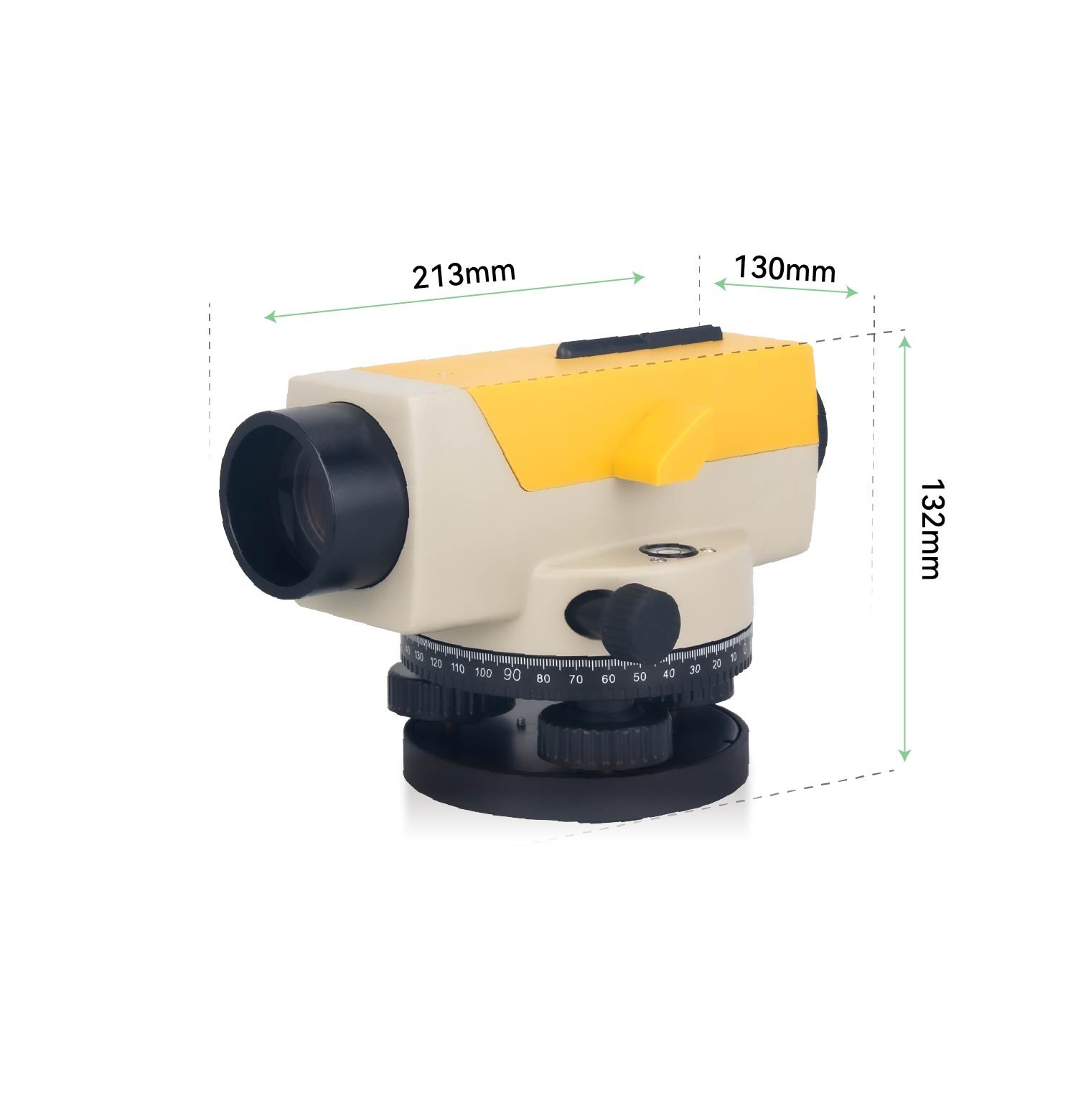

Dimension

  • 213 mm × 132 mm × 130 mm

Weight

  • 1.9 kg

Working temperature

  • -20°C ~ +50°C

Waterproof & Dustproof

  • IP67

Lightweight & Portable

Compact in size and weighing only 1.9 kg, the AL15 is easy to carry and set up, making it a practical solution for mobile field crews and daily site work.

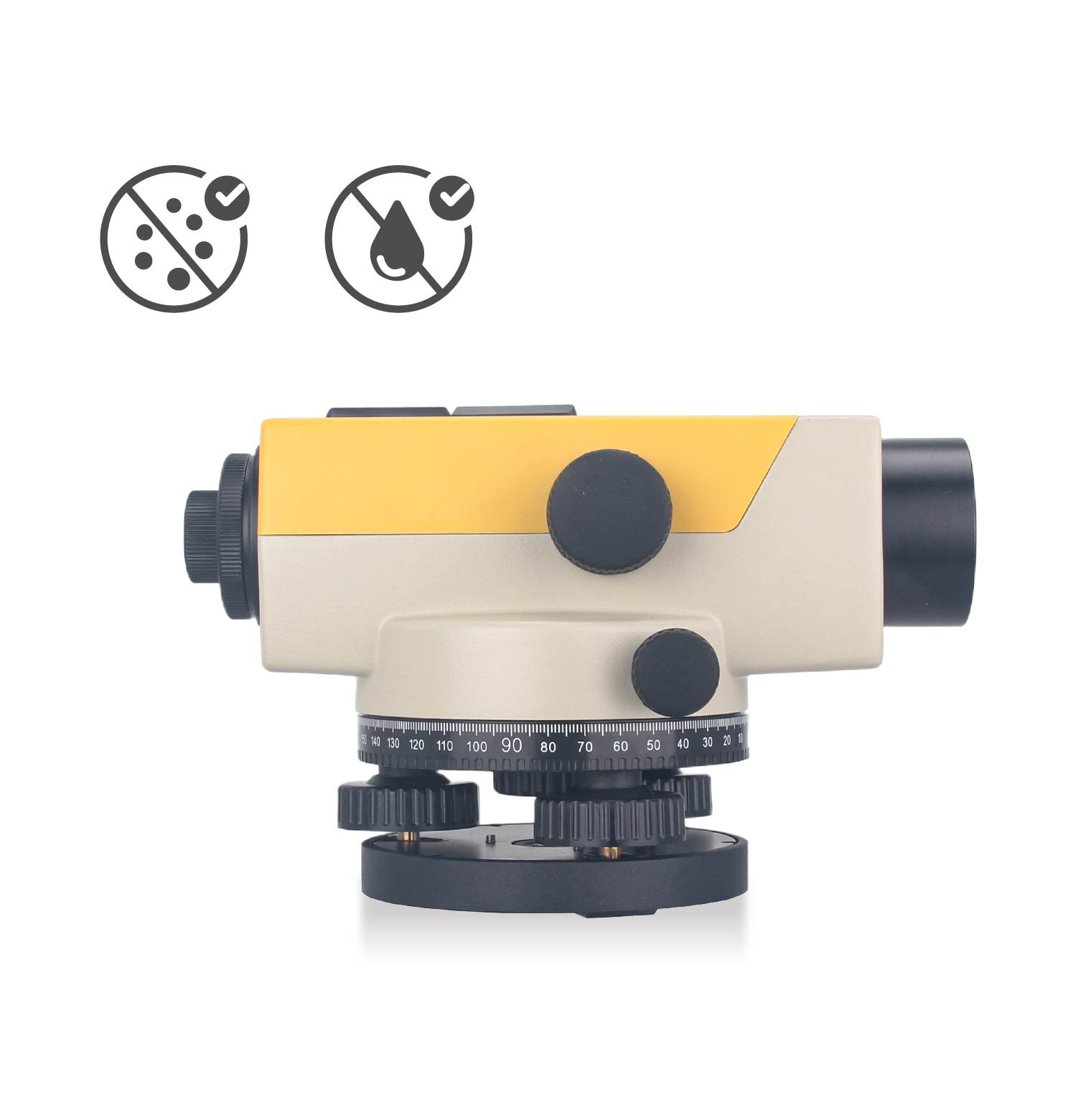

Rugged & Weatherproof

With IP67 protection and a temperature range from –20°C to +50°C, the AL15 withstands harsh outdoor conditions such as rain, dust, and temperature fluctuations, ensuring consistent performance in all environments.
